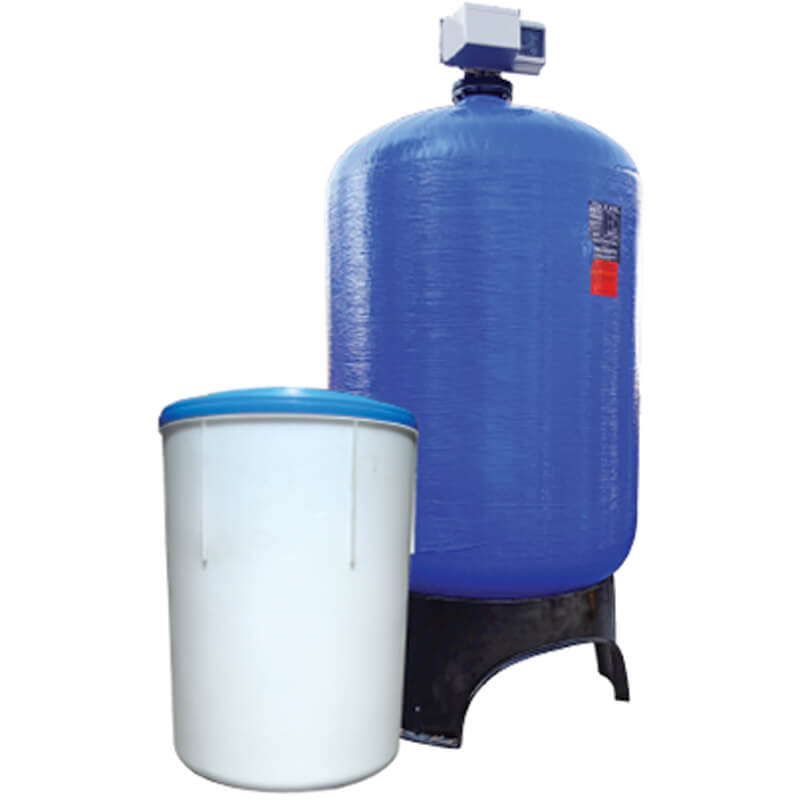

Flow controlled fully automatic water softening systems; These are systems that remove Calcium (Ca) and Magnesium (Mg) ions in water that cause hardness.

With HydroSoft-V flow rate controlled fully automatic systems; The calcium and magnesium ions in the water are removed by the ion exchange method. Softening systems measure the amount of water passing through a meter on the device and subject it to a previously programmed regeneration process.

The resin that reaches saturation regenerates with salt water in a controlled flow rate, and calcium and magnesium ions are removed from the water.

Standard Features

  • FRP or Painted Carbon Steel Body not affected by water
  • Fully Automatic Automation System
  • Suitable Model
  • Premium Minerals
  • Minimum Maintenance without Human Intervention
  • Low Energy and Operating Cost
  • 10 Bar Tank Test Pressure
  • 2 - 7 Bar Working Range
  • Max 50 ° C Working Temperature
MODEL FLOW CONNECTION CAPACITY MINERAL SALT CONSUMPTION TANK DIMENSIONS
  15 m³/h inch m³/x/F Lt. kg x rej. R x H (mm)
HydroSoft V/10 1 1’’ 144 8 1,5 207 - 432
HydroSoft V/20 1,5 1’’ 270 15 2,4 207 - 898
HydroSoft V/30 2 1’’ 450 25 4 258 - 897
HydroSoft V/50 2 1’’ 810 45 7.2 258 x 1386
HydroSoft V/60 2-3 1’’ 990 55 8.8 310 x 1333
HydroSoft V/75 3,4 1’’ 1170 65 10.4 338 x 1400
HydroSoft V/100-1 4-5 1’’ 1440 80 12.8 363 x 1674
HydroSoft V/100-2 4-5,5 1 1/2” 1440 80 12.8 363 x 1674
HydroSoft V/150-1 4-5 1’’ 2250 125 20 413 x 1671
HydroSoft V/150-2 5-6,5 1 1/2” 2250 125 20 413 x 1671
HydroSoft V/200-1 5 1’’ 3150 175 28 486 x 1722
HydroSoft V/200-2 6-8 1 1/2” 3150 175 28 486 x 1722
HydroSoft V/250-1 5 2” 4050 225 36 555 x 1721
HydroSoft V/250-2 8-10 1 1/2” 4050 225 36 555 x 1721
HydroSoft V/250-3 11 2” 4050 225 36 555 x 1721
HydroSoft V/300-1 10 1 1/2” 4950 275 44 626 x 1918
HydroSoft V/300-2 10-14 2” 4950 275 44 626 x 1918
HydroSoft V/500 18-23 2” 8100 450 72 780x1836x2171
HydroSoft V/800-1 20-25 2” 13500 750 120 938x1856x2198
HydroSoft V/800-2 20-34 3” 13500 750 120 938x1856x2198
HydroSoft V/1000-1 20-25 2” 16200 900 144 1089 x 2360
HydroSoft V/1000-2 36-45 3” 16200 900 144 1089 x 2360
HydroSoft V/1200-1 20-25 2” 21600 1200 192 1233 x 2360
HydroSoft V/1200-2 45-55 3” 21600 1200 192 1233 x 2360



MODEL FLOW CONNECTION CAPACITY MINERAL SALT CONSUMPTION TANK DIMENSIONS
  15 m³/h inch m³/x/F Lt. kg x rej. R x H (mm)
HydroSoft YT / 1200 56 2 1/2’’-3’’ 25200 1400 224 1200
HydroSoft YT / 1400 62 2 1/2’’-3’’ 36000 2000 320 1400
HydroSoft YT / 1600 80 3’’ 45000 2500 400 1600
HydroSoft YT / 1800 100 3’’-4’’ 54000 3000 480 1800
HydroSoft YT / 2000 130 4’’ 72000 4000 640 2000
HydroSoft YT / 2200 180 4’’-6’’ 90000 5000 800 2200
HydroSoft YT / 2400 200 6’’ 108000 6000 960 2400
